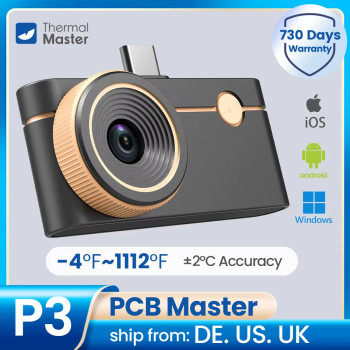

P3 Type-C thermal imaging repair camera
The ultimate tool for board repair. The P3 Thermal Camera features a stunning 512×384 Resolution and a Built-in Adjustable Macro Lens. Detect short circuits on PCBs instantly. Compatible with Android (USB-C) and iPhone.
Transform your smartphone into a laboratory-grade diagnostic tool with the P3 Thermal Imaging Camera. Engineered specifically for electronics repair and PCB diagnostics, this device sets a new standard with its massive 512×384 IR resolution.
Unlike standard thermal cameras that require expensive additional macro lenses to see small components, the P3 features a built-in Adjustable Macro Lens. Simply twist the lens to focus on targets as small as 0201 capacitors. Whether you are troubleshooting a shorted mobile phone logic board, a laptop motherboard, or inspecting HVAC systems, the P3 reveals the invisible heat signatures instantly.
Key Features
- Ultra-High 512×384 Resolution:

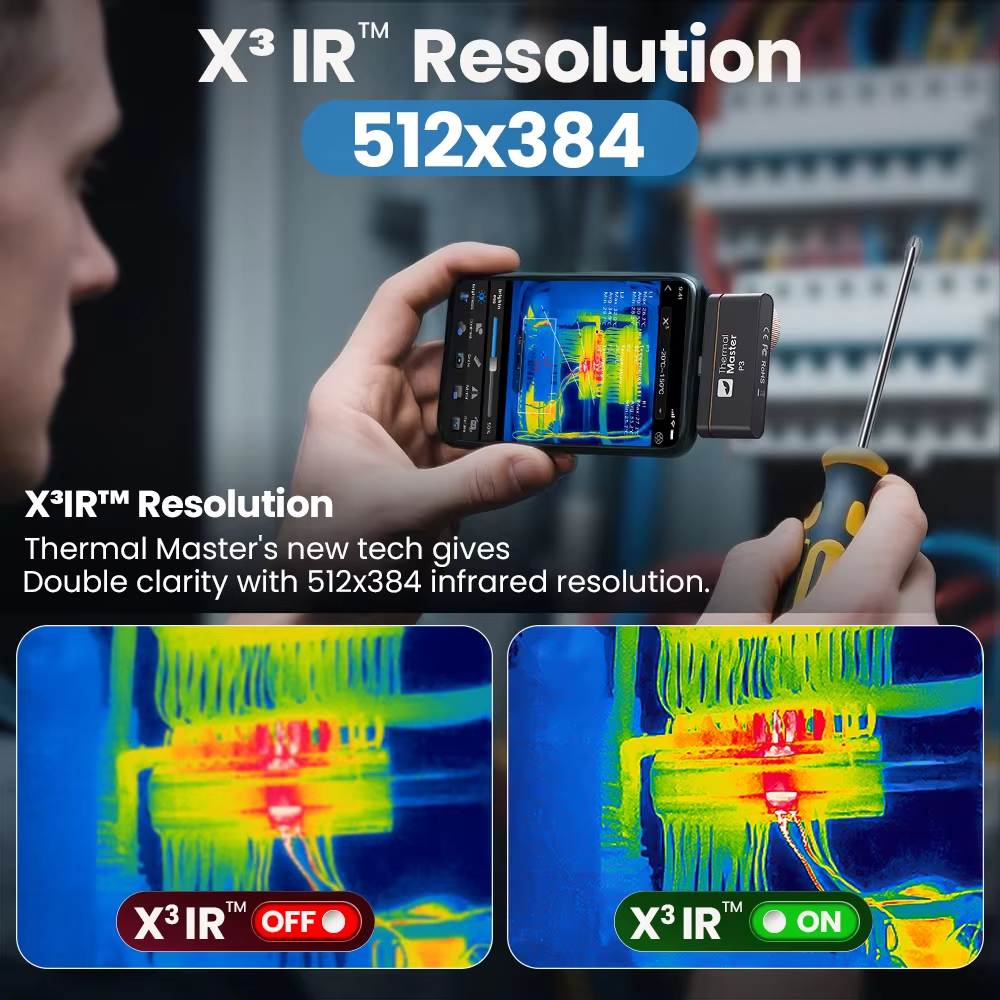

See the world in high definition thermal. With 196,608 temperature pixels, the P3 offers significantly sharper images than standard (256×192) cameras. This clarity is critical for identifying exactly which tiny capacitor or IC is overheating on a dense circuit board. - Built-in Adjustable Macro Lens:

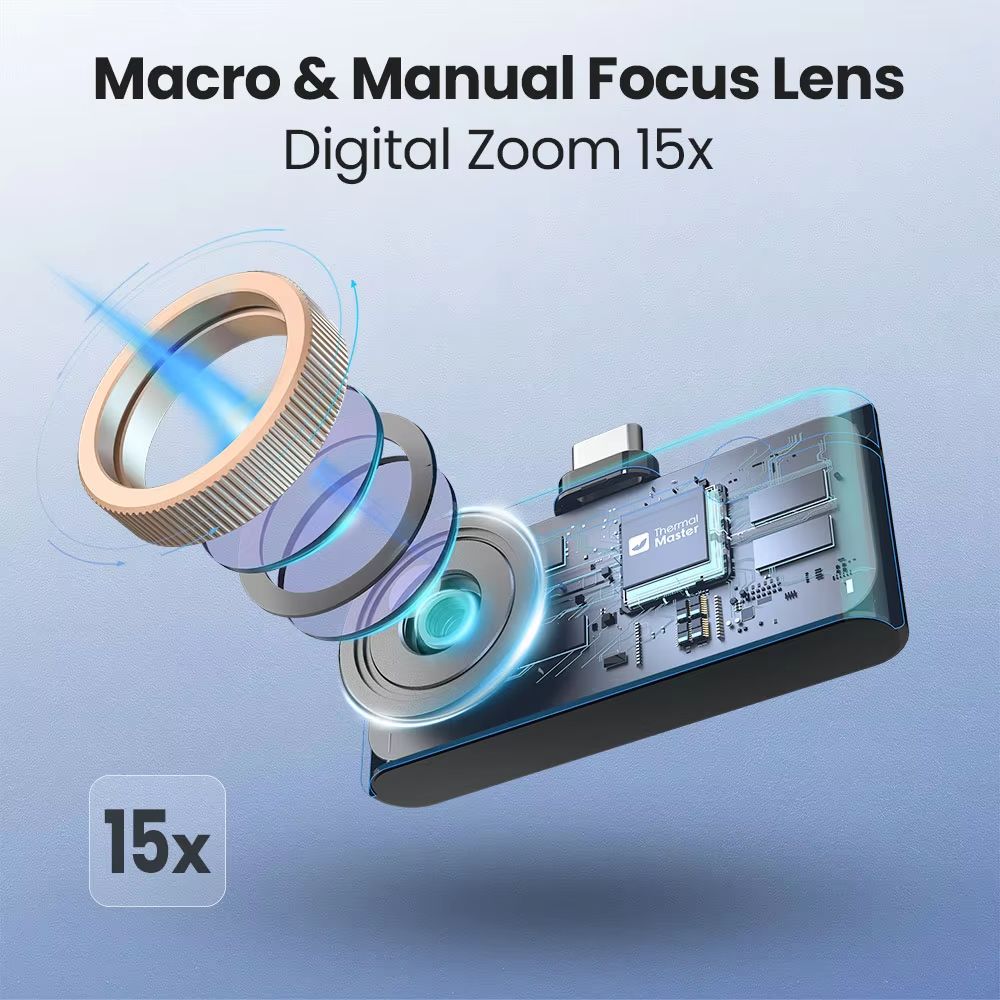

No extra accessories needed! The P3 comes with a manual focus lens.
- Macro Mode: Twist to focus on objects just 2cm away to inspect tiny SMD components.
- Distance Mode: Twist back to inspect breaker panels, water leaks, or engines from a distance.
- Dual Compatibility (Android & iPhone):

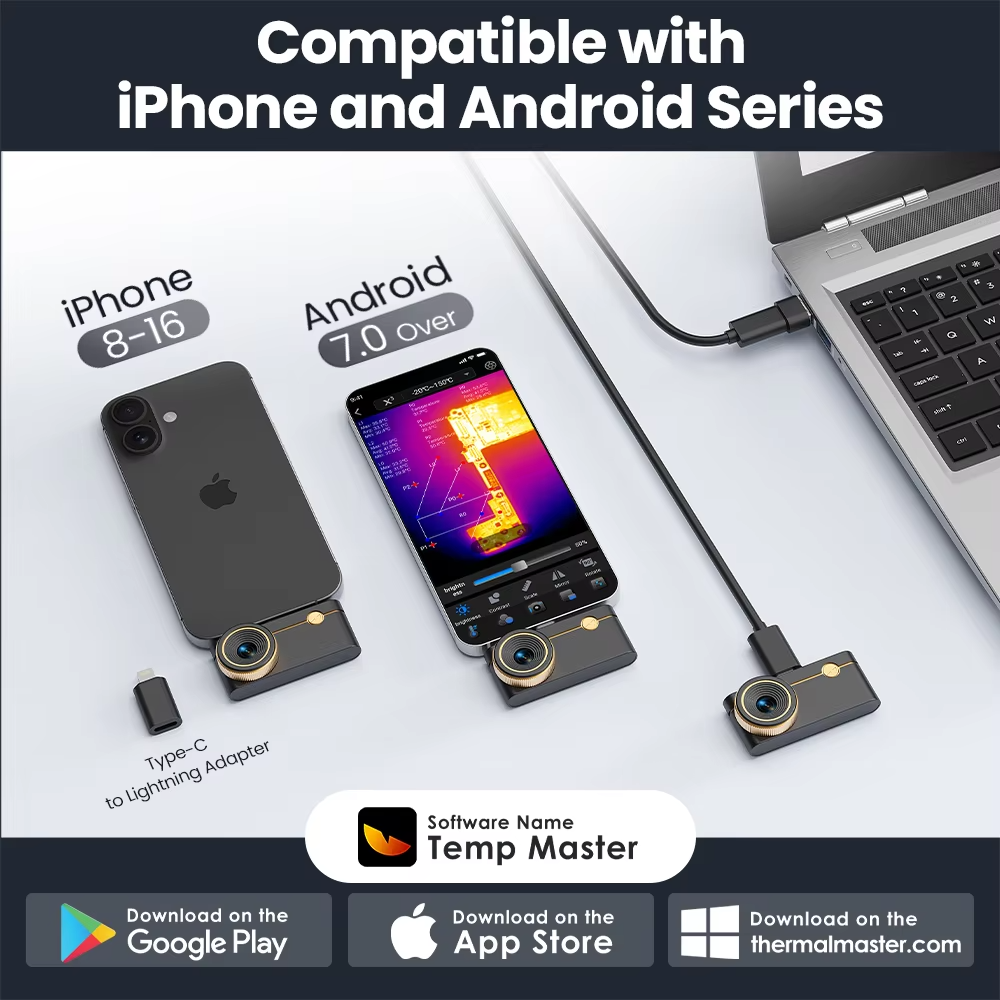

Versatility meets convenience. Designed with a USB Type-C interface, it connects directly to Android phones (with OTG) and supports the iPhone 15/16 series. (Note: Older iPhones with Lightning ports may require the included adapter or specific cable kit depending on the package). - Wide Temp Range (-20°C to 600°C):
From freezing cold to melting lead. The P3 covers a massive temperature range, making it suitable for finding subtle leakage currents (milliamp shorts) or monitoring high-heat soldering tasks. - Rapid Fault Diagnosis:
Forget the “Rosín Smoke” method. The P3 detects thermal runaway and short circuits in seconds. The dedicated App allows you to track the highest temperature point automatically, saving you hours of diagnostic time. - Professional App Analysis:
The companion app offers advanced features:
- Temperature Tracking: Auto-track High/Low/Center temps.
- Color Palettes: Switch between Iron, Rainbow, White Hot, and Black Hot for better contrast.

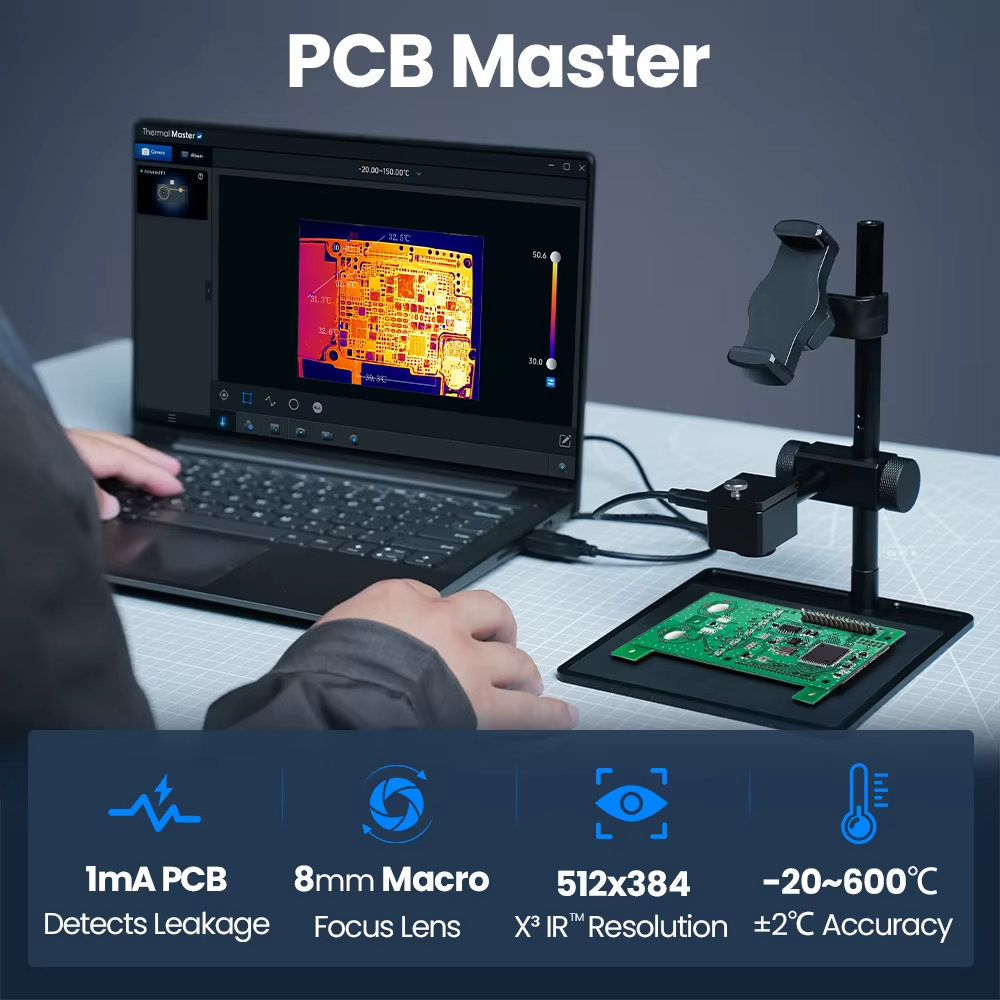

- PC Analysis: Supports data export for professional report generation.
- Model: P3 Pro Thermal Imager
- IR Resolution: 512 × 384 pixels (High Definition)
- Frame Rate: 25Hz (Smooth video)
- Focus Mode: Manual Adjustable Focus (Macro to Infinity)
- Temperature Range: -20°C ~ 600°C (-4°F ~ 1112°F)
- Measurement Accuracy: ±2°C or ±2%
- Interface: USB Type-C
- Field of View (FOV): 45° × 34°
- Material: Metal Alloy Housing (Durable & Heat Dissipating)
Applications:
- Electronics Repair: Detecting short circuits on Phone/Laptop Motherboards.
- Precision Soldering: Monitoring thermal profiles.
- Home Inspection: Finding water leaks, insulation gaps, and electrical faults.
- Automotive: Fuse box and engine diagnostics.
What’s in the Box:
- 1 x P3 Thermal Camera Unit
- 1 x USB-C Connection Cable / Adapter
- 1 x Protective Carrying Case
- 1 x Cleaning Cloth
- 1 x User Manual
