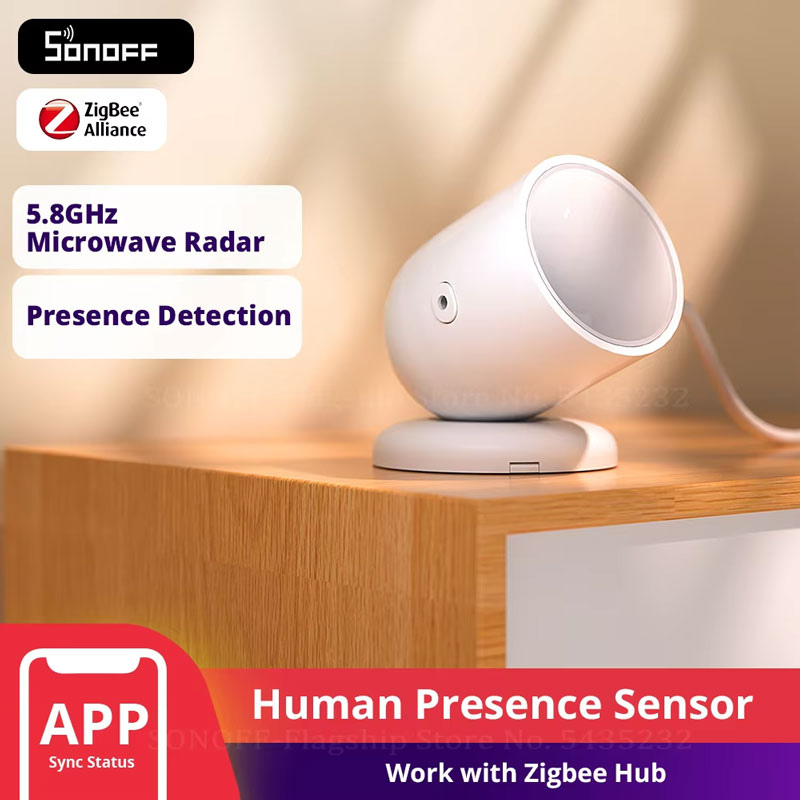

SONOFF SNZB-06P Zigbee 3.0 Human Presence Sensor
Upgrade your smart home with the SONOFF SNZB-06P Zigbee Human Presence Sensor. Utilizing advanced 5.8GHz microwave radar technology, it accurately detects even the slightest human movement to trigger your smart home automations reliably. With its compact design and broad compatibility with major smart ecosystems, it is the perfect addition for seamless, automated lighting and security control.
- Technology: Advanced 5.8GHz Microwave Radar detection
- Connectivity: Ultra-stable Zigbee 3.0 protocol
- Compatibility: Works with Alexa, Alice, ZHA, and Zigbee2MQTT
- Power: Convenient Type-C power input interface
Key Features
- High-Precision Radar Detection: Employs state-of-the-art 5.8GHz microwave radar technology to accurately detect both major motion and micro-movements (like breathing or typing), keeping your lights on when you need them.
- Stable Zigbee 3.0 Protocol: Functions as a Zigbee router device, not only providing a fast and reliable connection but also helping to extend and strengthen your overall smart home mesh network.
- Broad Ecosystem Integration: Seamlessly integrates with popular smart home platforms including Amazon Alexa, Yandex Alice, ZHA (Zigbee Home Automation), and Zigbee2MQTT for ultimate control flexibility.
- Compact & Unobtrusive Design: Weighing only 31g with a small footprint (44.2 x 44.2 x 59mm), this sleek sensor blends perfectly into any room’s decor without drawing unwanted attention.
- Continuous Type-C Power: Designed with a modern Type-C power input interface, ensuring continuous, battery-free operation so your smart home automations never go offline unexpectedly.
Compatibility & Best Use
- Smart Lighting Automation: Perfect for reading nooks, bathrooms, and home offices where traditional PIR sensors might turn off the lights if you sit too still.
- Universal Smart Home Hubs: Requires a compatible Zigbee 3.0 hub (such as a SONOFF Zigbee Bridge or similar standard coordinators) to function within your automated network.
- Security & Monitoring: Acts as a highly sensitive trigger for home security routines, alerting you instantly to unexpected presence in monitored areas.
Installation Tips

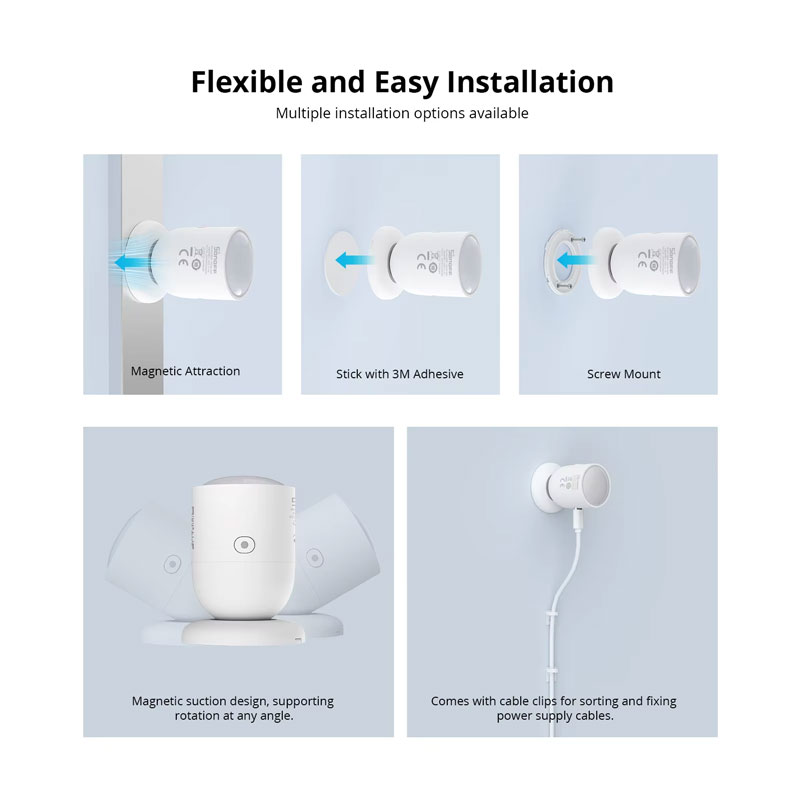

- Optimal Placement: Mount the sensor on a wall or ceiling with a clear line of sight to the desired detection area, avoiding direct interference from large metal objects.
- Power Connection: Simply plug a standard Type-C cable (and a compatible 5V power adapter) into the device to power it on for continuous use.
- Network Pairing: Put your Zigbee hub into pairing mode, then press and hold the pairing button on the sensor until the LED indicator flashes to join your smart network.
Product Specifications
| Brand Name | SONOFF |
|---|---|
| Model Number | SNZB-06P |
| Communication Protocol | Zigbee 3.0 (Router Device Type) |
| Detection Technology | 5.8GHz Microwave Radar |
| Power Input Interface | Type C |
| Casing Material | ABS + PC |
| Working Temperature / Humidity | -10°C~60°C / 0~90%RH, non-condensing |
| Product Dimensions | 44.2 x 44.2 x 59 mm |
| Net Weight | 31g |
| Certifications | CE, FCC, RoHS |
Packing List
- 1 x SONOFF SNZB-06P Zigbee Human Presence Sensor
- 1 x User Manual & Quick Start Guide
- Note: A Type-C charging cable and power adapter may be required separately depending on your chosen bundle.
Warnings & Safety Notes
- Hub Required: This device utilizes the Zigbee 3.0 protocol and must be paired with a compatible Zigbee hub or gateway; it will not connect directly to standard Wi-Fi routers.
- Indoor Use Only: Designed strictly for indoor smart home environments. Keep away from direct water exposure or extreme humidity exceeding 90% non-condensing.
- Radar Interference: Avoid installing the sensor directly adjacent to thick metal plates or powerful wireless transmitters that could disrupt the 5.8GHz microwave radar signals.
